Visual warning lights provide an immediate indication of an alarm, machine condition or change in operating status.

Typical applications include:

Factory machinery, Production lines, Conveyor systems, Mining equipment, Warehouses, Control panels, Material handling equipment, Construction machinery, Industrial vehicles, Process plants, Building alarm systems.

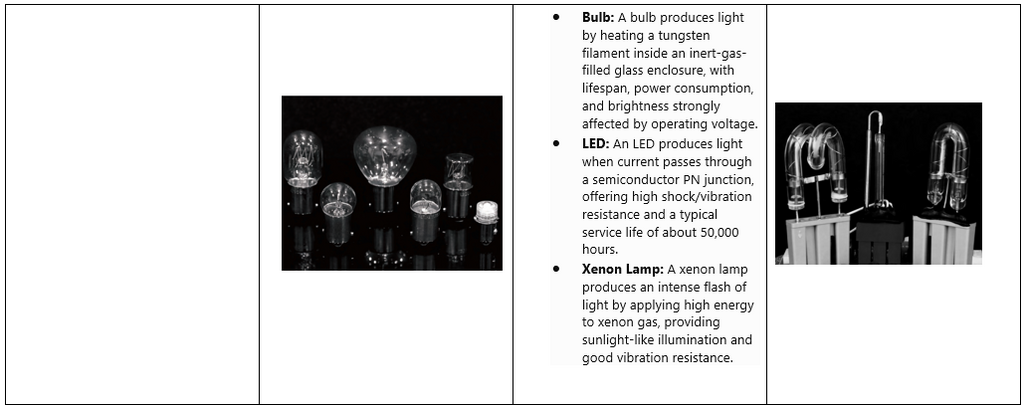

LED warning lights provide a long operating life and low power consumption. Depending on the model, LED units can provide:

Flashing operation, Revolving-light effect, Steady illumination, Strobe effects, Multiple flashing patterns, Different colours, Different mounting arrangements.

LED technology is particularly useful for installations where long service life and reduced maintenance are important.

Flashing warning lights provide a clear visual indication intended to attract attention quickly. They can be used for:

Machine alarms, Equipment faults, Process warnings, Emergency conditions, Vehicle warning, Access control, Production status, General industrial signalling.

Revolving lights provide the familiar rotating warning-light effect traditionally produced by a motor-driven reflector. Modern products can also use LEDs to simulate the revolving effect without requiring a mechanical rotating assembly.

Applications include:

Machinery, Industrial vehicles, Factories, Warehouses, Construction equipment, General warning systems. High-intensity strobe lights provide a highly noticeable visual warning. Depending on the model, strobe lighting can use: Xenon lamps and High-output LEDs. Strobes are useful where a highly visible alarm signal is required.

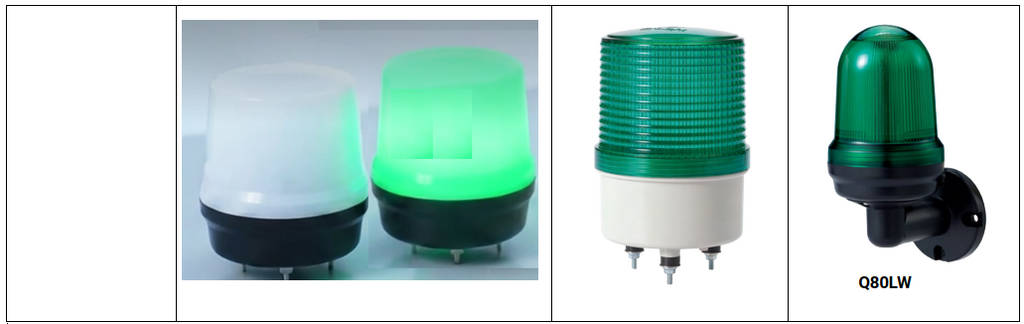

Not every application requires a flashing signal. Steady lights are useful for indicating:

Machine running, Machine stopped, Power available, Process condition, Access condition, Equipment status. Different colours can be used to indicate different operating status.

Depending on the particular product, warning lights can be supplied in different colours.

Common colours include:

Red

Normally used for emergency, danger or stop conditions.

Amber/Yellow

Frequently used for warning or attention conditions.

Green

Commonly used for normal, safe or operating conditions.

Blue

Used for particular information or specialist applications.

Clear / White

Used where general visual indication or illumination is required.

The correct colour should be selected according to the machine, plant or safety requirements of the application.

Our range of warning lights are available in different sizes.

Diameters vary depending on the model.

Typical Sizes: 50 mm to 180 mm. This allows the warning device to be matched to the size of the machine and the required viewing distance, ensuring clear visibility in a wide range of operating environments.

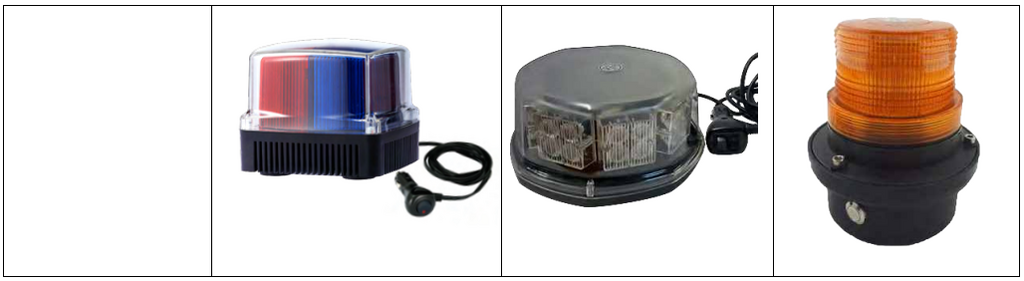

For applications where permanent mounting is not required, selected Magnetic-Base Warning Beacons can be supplied with magnetic mounting.

Applications can include: Maintenance Vehicles, Service Vehicles, Temporary Machinery, Mobile Equipment and Temporary warning systems. This type of flexible mounting option allows the warning beacon to be quickly installed, repositioned, or removed as required.

Stackable lights allow several visual indicators to be incorporated into a single assembly. Different colours can indicate different conditions.

Colour example:

Green – Machine operating normally

Amber – Attention required

Red – Alarm or machine stopped

Stackable lights are commonly used on:

CNC machinery, Packaging equipment, Production lines, Automated machinery, Conveyor systems, Control panels.

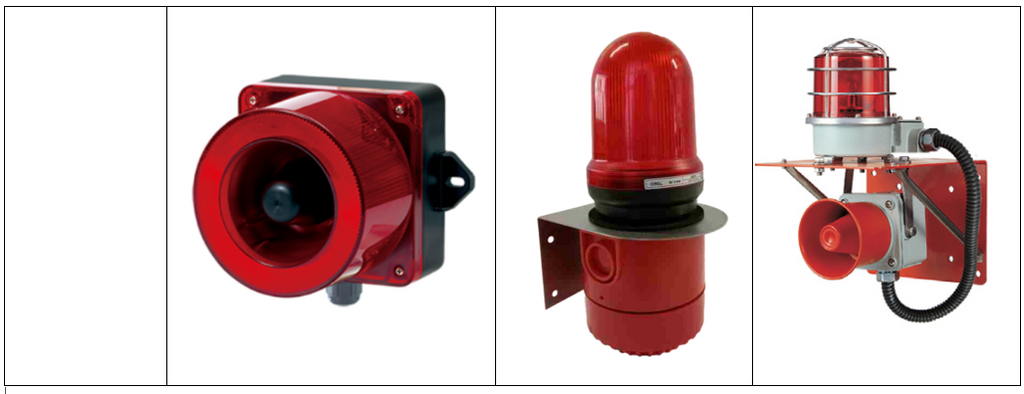

Combined Light & Sounder Units are ideal for applications where personnel need both a visual and audible warning, which combined units provide via multiple signalling options in one device.

Depending on the application, units can incorporate:

Warning light, Siren, Buzzer, Electronic sounder & Horn.

Using a combined light and sounder unit can help simplify installation, reduce wiring and provide a clear, coordinated warning system.

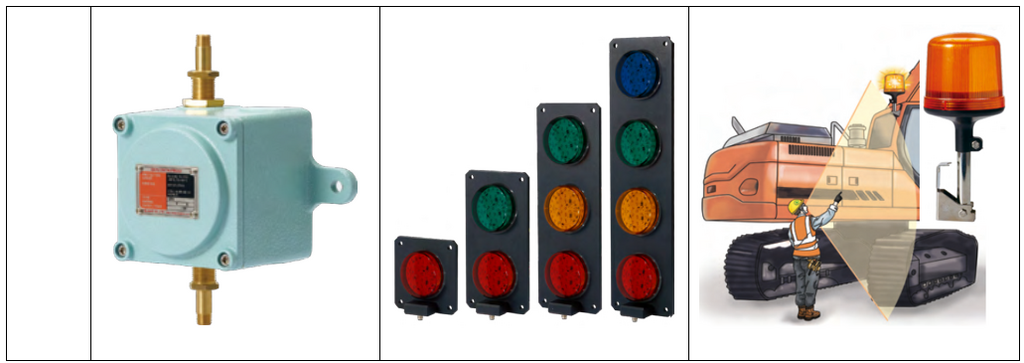

For outdoor use, the environmental protection of the warning light is particularly important.

Consideration of elements include: Rain, Dust, Moisture, Direct sunlight, Heat, Vibration, Corrosive conditions and High-pressure cleaning. Products are available with different enclosure and IP protection levels depending on the model, helping to ensure reliable operations in demanding outdoor environments.

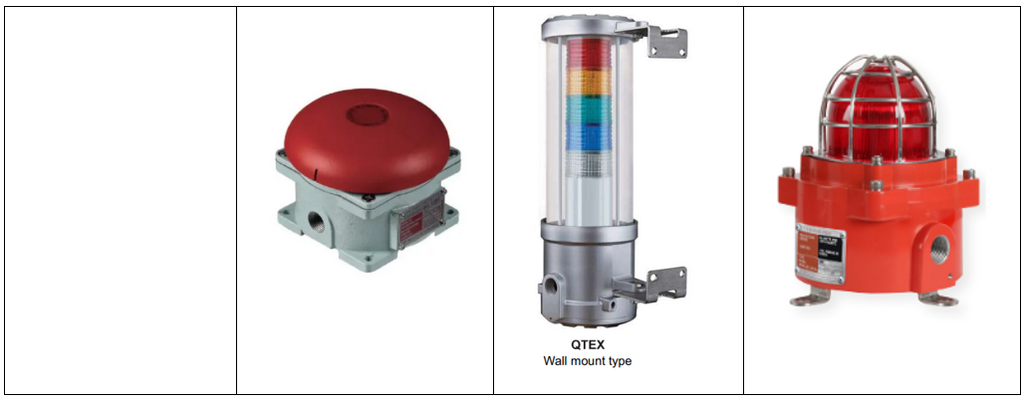

Special warning lights are available for demanding industrial areas and marine environments.

Applications where greater resistance is required to: Vibration, Water, Corrosion, Impact, and Severe weather may be needed. These heavy-duty warning lights are designed to provide reliable performance in challenging conditions where standard warning lights may not be suitable.

Aviation aircraft warning lights, also known as obstruction lights, are installed on tall structures to make them clearly visible to aircraft, particularly during night-time and periods of reduced visibility.

They are available in different types and intensities, including low-intensity, medium-intensity, and high-intensity obstruction lights depending on the height, location, and characteristics of the structure. Power supply available as power source electrical mains or internal solar.

How to select the correct warning light:

When requesting a quotation, please provide:

Required voltage, AC or DC supply, Required colour, Flashing / revolving or steady operation, Indoor or outdoor use, Approximate required size, Mounting arrangement, Required IP rating if specified, Application type and Quantity needed.
